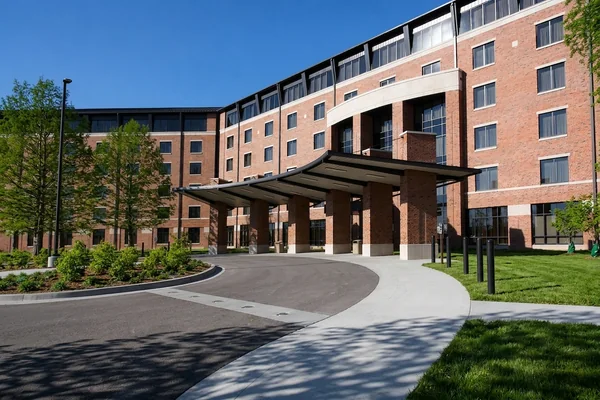

Blast-Resistant Aluminum Window Systems

Boyd Aluminum manufactures blast-resistant aluminum window systems for commercial, institutional, government, DoD, GSA, and anti-terrorism/force-protection (ATFP) projects. Blast-rated projects require window systems tested for defined protection levels, project criteria, glazing requirements, anchorage conditions, and applicable facility standards.

Boyd offers selected blast-resistant window systems with Certified Level 1 and Certified Level 2 options, depending on the selected series, configuration, glazing, anchorage, opening condition, and project requirements. The certifying standard or test basis should be confirmed against current blast documentation for the selected configuration. Boyd can help project teams review product options, test information, CAD detail requests, Division 08 guide specifications, and documentation for blast-mitigation work.

What Are Blast-Resistant Window Systems?

Blast-resistant window systems are designed and tested to help manage hazards from explosive events by evaluating how glazing, frames, anchorage, and system configurations perform under defined blast conditions. Blast-resistant windows, also described in the industry as blast mitigation systems, are designed to reduce blast hazards; they are not blast-proof products.

For government, institutional, military, and high-security commercial projects, blast-window selection may involve DoD, GSA, UFC, ISC, AAMA, or ATFP criteria. Final selection should be reviewed against the project-specific threat criteria, opening size, glazing makeup, anchorage, surrounding construction, and current blast documentation for the selected configuration.

Blast-Resistant Window Systems by Series and AAMA Ratings

Boyd offers selected blast-resistant aluminum window systems for blast mitigation review by series. Product selection depends on the required protection level, AAMA performance rating, window type, glazing requirements, project specifications, anchorage, and installation conditions. Select a series below to review available system options or request CAD details, DWG files where available, drawings, product data, and architectural specifications for your project.

Blast-resistant aluminum window systems and configuration notes.

Note: AW, CW, and LC PG values are AAMA structural performance classes. Blast documentation is configuration-specific and should be requested for the selected series, glazing, anchorage, opening condition, and project criteria.

Boyd's blast-window experience supports architects, contractors, owners, security consultants, engineers, and project teams working through high-security commercial, institutional, and government building requirements.

What Do Blast Protection Levels Mean?

Blast protection levels describe how a tested window system performs under defined blast conditions. In general, lower-numbered levels indicate greater protection and lower hazard conditions. Final system selection should be reviewed against the project-specific blast criteria, opening requirements, glazing makeup, anchorage, installation conditions, and applicable standards.

Boyd offers selected blast-resistant window systems with Certified Level 1 and Certified Level 2 options. Availability depends on the selected series, configuration, glazing, anchorage, and project requirements. Confirm the test basis, certifying standard, specimen size, glazing, anchorage, pressure, impulse, and performance condition for the selected configuration before treating any Certified Level 1 or Certified Level 2 reference as applicable to a project.

The GSA/ISC level reference below explains common performance-condition terminology used in blast review. It should not be assumed to map automatically to a Boyd Certified Level 1 or Certified Level 2 option unless the current test report or engineering documentation confirms that basis for the selected series and configuration.

Blast Protection Level Reference

The following examples describe common GSA/ISC Performance Condition outcomes used to communicate blast protection levels. These examples explain terminology; they do not replace project-specific blast documentation for the selected window configuration.

Common GSA/ISC blast protection level outcomes.

Blast Mitigation Window Standards

Blast-rated window projects may involve standards and criteria such as GSA-TS01-2003, UFC 4-010-01, DoD requirements, GSA requirements, ISC Performance Conditions, ASTM F1642, AAMA 510, and ATFP criteria. Requirements vary by project, authority, opening size, glazing, anchorage, and system configuration.

AAMA 510 is a voluntary guide specification used in the industry for blast hazard mitigation for fenestration systems. ASTM F1642 is an airblast test method used to evaluate glazing and window-system hazard performance under defined blast conditions. These references should be treated as blast-window specification and test-method terminology, not as universal product ratings or substitutes for project-specific test documentation.

As an AAMA (now part of FGIA) Blast Task Force Committee Member and AAMA Blast Education leader, Boyd helps project teams understand current blast-window requirements, available product options, performance documentation, and specification considerations for blast-resistant window applications.

Blast-resistant and impact-rated windows are not interchangeable. Blast-resistant systems are reviewed against explosive-load criteria such as GSA/ISC performance conditions, while impact-rated systems are tested for windborne-debris and hurricane-region approvals. A product rated for one is not automatically rated for the other.

Blast Criteria and Threat-Assessment Terms

Blast-window review often starts with the project threat criteria. Common terms include charge weight, stand-off distance, peak overpressure, positive phase impulse, test method, specimen size, glazing makeup, anchorage, and performance condition.

• Charge weight: the assumed amount of explosive material or TNT-equivalent load used by the project criteria or test documentation.

• Stand-off distance: the distance between the assumed blast source and the window or building facade.

• Peak overpressure: the maximum blast pressure considered by the criteria or test documentation.

• Positive phase impulse: the pressure-time effect used with peak overpressure to describe the blast load.

• Test method: blast documentation may identify an arena test, shock-tube test, or other test basis. Do not assume two reports are equivalent without reviewing the method, specimen size, pressure, impulse, glazing, anchorage, and performance condition.

Common Blast Window Coordination Issues

Blast-resistant window selection depends on the complete opening, not just the window series. Review the criteria, glazing, frame, anchorage, substrate, and documentation requirements before finalizing the bid scope, specification path, shop drawings, or submittal package.

• Threat criteria: confirm the required protection level, performance condition, charge weight, stand-off assumptions, or security consultant criteria before selecting a window path.

• Glazing makeup: coordinate glass thickness, laminated glazing, insulating glass, muntins where applicable, and any project-specific glazing notes.

• Anchorage and substrate: confirm anchorage, receptor, mullion, masonry, steel, concrete, and surrounding construction conditions because blast performance depends on the complete opening condition.

• Opening size and configuration: match the selected series, operation type, opening dimensions, and configuration to available documentation.

• Documentation: request current blast documentation, product data, CAD details, DWG files where available, Division 08 guide specifications, and any required submittal information for the selected configuration.

• Adjacent requirements: coordinate blast criteria separately from impact, hurricane, forced-entry, or ballistic requirements. Each hazard type requires its own documented path.

Blast and Impact Testing Facility

Boyd operates on-site blast and impact testing facilities that support system development, configuration review, and project-specific testing discussions. Testing requirements still need to be matched to the exact series, glazing, anchorage, opening condition, threat criteria, and current documentation for the project.

The blast testing examples below show how different performance conditions can be demonstrated under controlled test conditions. Project teams should request current documentation for the selected blast-resistant window configuration rather than relying on a general video or graphic alone.

Blast Window Testing Examples

The following blast testing videos demonstrate how different GSA/ISC performance conditions may appear under defined test conditions.

Level 1 Blast Protection - safe; no hazard; glazing does not break. No visible damage to glazing or frame.

Level 2 Blast Protection - very high protection; no hazard; glazing cracks but is retained by the frame. Dusting or very small fragments near the sill or on the floor are acceptable.

Level 4 Blast Protection - medium protection and medium hazard level; glazing cracks. Fragments enter the space and land on the floor and impact a vertical witness panel at a distance of no more than 10' from the window at a height no greater than 2' above the floor.

Level 5 Blast Protection - low protection and high hazard level; glazing cracks and the window system fails catastrophically. Fragments enter the space and impact a vertical witness panel at a distance of no more than 10' from the window at a height greater than 2' above the floor.

What to Send Boyd for a Blast Project

To help Boyd review a blast-resistant window request, send the project information that affects product selection, test-documentation review, pricing, submittal requirements, and installation coordination.

• Required protection level or performance condition from the project specification.

• Project security criteria or threat assessment, including charge weight, stand-off assumptions, or criteria from the security consultant, owner, RFP, or specification where available.

• Applicable standard or criterion, such as UFC 4-010-01, GSA, ISC, DoD, ASTM F1642, AAMA 510, or project-specific ATFP requirements.

• Window schedule, opening sizes, elevations, drawings, and project details.

• Glazing requirements, system preferences, and any required Certified Level 1 or Certified Level 2 review.

• Any required test basis or certifying standard for the selected configuration, including whether the specification cites GSA/ISC performance conditions, AAMA 510, ASTM F1642, GSA-TS01-2003, or project-specific criteria.

• Anchorage, substrate, receptor, mullion, and surrounding construction conditions where known.

• Project location, bid deadline, specification section, submittal requirements, and authority-review requirements.

Related Boyd Resources

• Architectural Resources - request product data, CAD details, DWG files where available, Division 08 guide specifications, and blast-window documentation.

• Product Information - review Boyd Aluminum window, storefront, door, curtain wall, historic, blast, impact, and specialty product families.

• Impact and Florida Product Approval Review - review selected impact-rated and Florida Product Approved configurations separately from blast requirements.

• Storefront and Curtain Wall Accessories - coordinate receptors, anchors, panning, snap trim, and surrounding opening conditions where applicable.

• Direct Assistance - get product, drawing, specification, and bid-support help from Boyd Aluminum.

Blast-Resistant Window Questions

Are any windows completely blast-proof?

No window system is completely blast-proof. The industry term is blast-resistant, because tested systems are evaluated by how they reduce hazards under defined blast conditions, not by eliminating all risk. Blast-rated projects typically specify protection levels, performance conditions, glazing requirements, anchorage conditions, and project-specific criteria rather than blast-proof products.

Boyd offers selected blast-resistant aluminum window systems with Certified Level 1 and Certified Level 2 options, depending on the selected series, configuration, glazing, and project requirements.

Which buildings require blast-resistant windows?

Blast-resistant windows are usually required by project-specific security criteria, owner requirements, government standards, or risk assessments rather than by a generic window requirement. Common project types include federal buildings, DoD facilities, government projects, institutional buildings, and high-security commercial facilities where the specification identifies a required protection level, performance condition, or ATFP criterion.

If a project specification cites UFC, GSA, ISC, DoD, ASTM F1642, AAMA 510, or other blast-related criteria, the required performance condition should be reviewed against the selected window series, configuration, glazing, anchorage, and supporting documentation. Boyd can help project teams review blast-resistant window options against those project requirements.

Are blast-resistant windows also bullet-resistant?

Blast-resistant windows and bullet-resistant windows are not the same thing. Blast-resistant systems are evaluated for explosive-load conditions, while ballistic or bullet-resistant products are evaluated under separate ballistic standards such as UL 752.

A blast rating does not automatically mean a window is bullet-resistant, and a ballistic rating does not automatically mean a product is blast-resistant. Each protection requirement should be confirmed separately for the exact product, glazing, framing, anchorage, and project specification.

Is an AAMA AW-PG rating the same as a blast rating?

No. AAMA AW, CW, and LC performance classes and their PG performance grades describe air, water, and structural performance under window performance standards; they are not the same as blast ratings. Blast performance is documented separately and depends on the selected series, configuration, glazing, anchorage, opening condition, and project criteria.

When reviewing Boyd blast-resistant window options, use AW/CW/LC-PG values as structural-performance information and request current blast documentation for the selected configuration.

Ready to review Certified Level 1 or Certified Level 2 blast-resistant window options for your project? Contact Boyd for bid support, product guidance, CAD details, drawings, specifications, and Direct Assistance project help.
