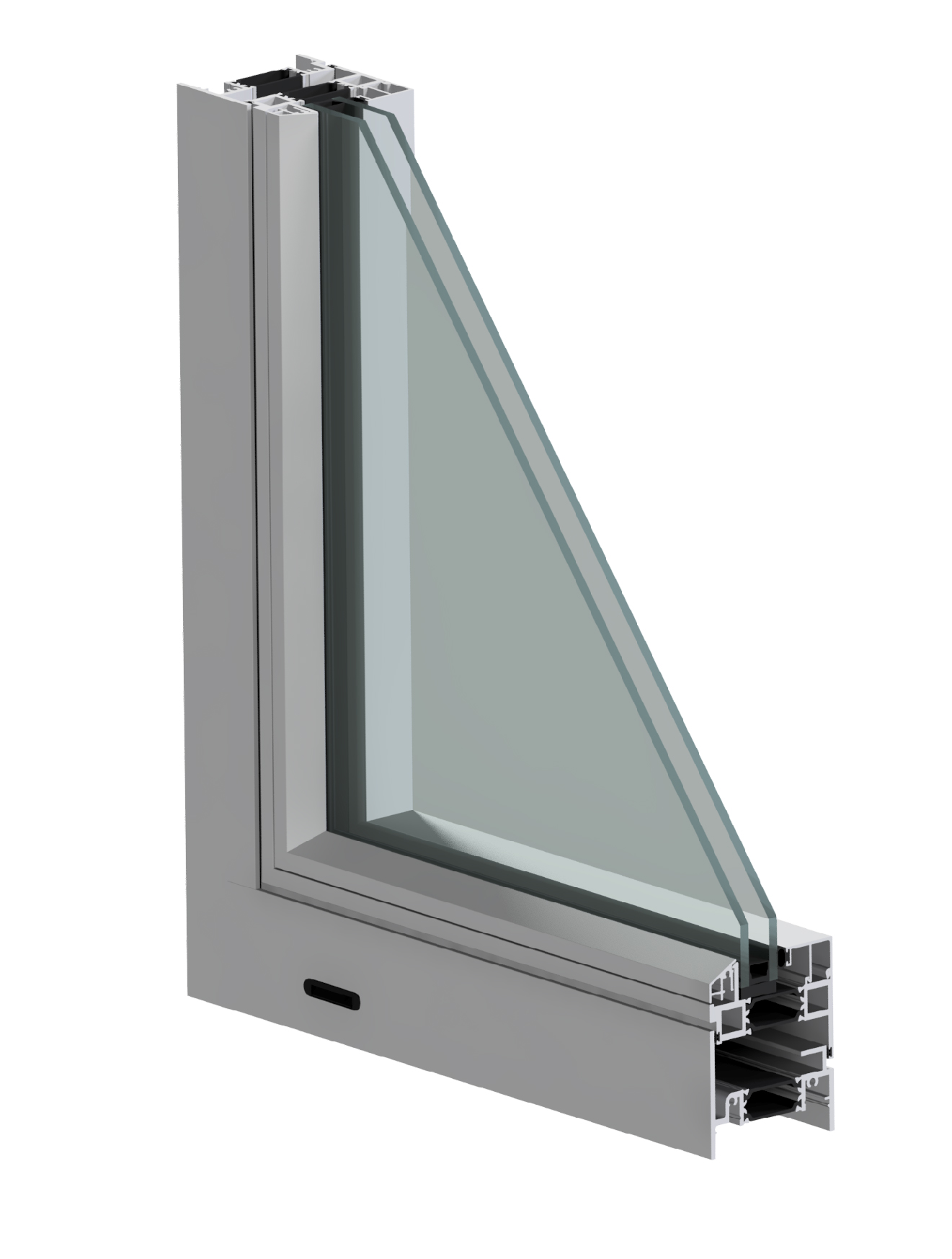

Series 3250XTP Project-In

If you are looking to save energy and minimize condensation over the life of your building, Boyd's Series 3250XTP (PI) thermal-strut window system could be the right fit for your project. It features an impressive 39mm thermal strut that results in a low U-value window, with a 3.25" main frame depth and tank sill for increased water performance. Our interior-glazed windows are ideal for schools, universities, government offices, hospitals, military buildings, and other commercial applications with stringent energy code requirements.

We engineered the Series 3250XTP (PI) aluminum thermal window system to meet AAMA guidelines for AW-PG80 projected windows. Structural walls are also .125" thick for durability and the flush, sleek appearance gives designers the look that is in high demand. Sashes are mitered, corner keyed, and crimped for increased strength, and the series also boasts .5" glass bite. When in need for energy-efficient windows, select the high-performance, sleek Series 3250XTP (PI). To take the next step and gather more details, contact your Direct Assistance™ rep.

Case Study: Boyd Series 3250XT & The 2030 Challenge

Boyd Series 3250XTP Project-In Advantages:

• 39mm extra-wide polyamide crimped-in-place structural thermal barrier for extremely low U-Values
• Tank sill for increased water performance
• 3.25" frame depth
• Interior glazed
• Structural wall areas are .125" thick for durability
• Snap-in glazing bead
• 1.0" and 1.75" glazing
• .5" glass bite
• The vent presents a flush appearance with the exterior and interior of the main frame when in the closed position for a desirable, clean look
• Mitered, corner keyed, and crimped sash for increased strength. Main-frame construction is square-cut and mechanically fastened.
• Full range of panning, receptor systems, caulk backers, mullions, and snap trims
• Each vent utilizes two rows of weather stripping for ideal air performance
• Available with screens
• Complies with performance level 10 Forced Entry Requirements
